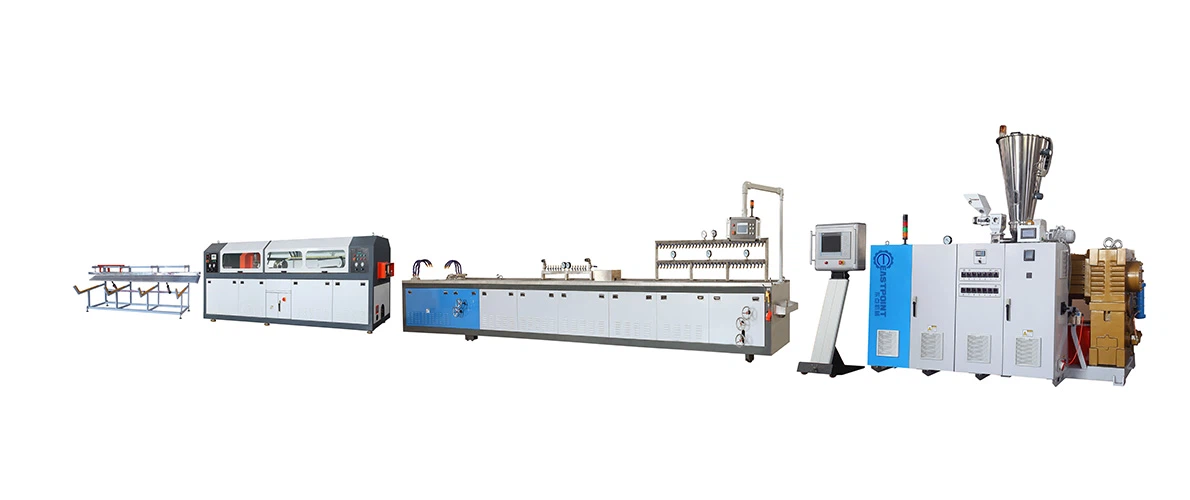

PE Profile Extrusion Line

PE profile extrusion line is a set of equipment for producing plastic profiles from polyethylene (PE). The process involves melting the PE resin, molding it into the desired profile shape, cooling it and cutting it to size.

The basic components of PE profile extrusion line include extruder, mold, cooling system, tractor and cutting machine. The extruder is the main part that melts and mixes the PE resin and feeds it into the die. The mold is used to shape the molten plastic into the required profile shape, PE profile extrusion line is a versatile and efficient method of producing plastic profiles with stable quality and high productivity.

-- Single screw extruder: High capacity, stable running, intelligent control, high precision.

-- Mold and calibrator: Made of 3Cr17 steel, processed by CNC machines to ensure high precision.

-- Calibration table: All water touched places are made of SUS304 and equipped with YUHUAN brand water pump and vacuum pump.

-- Haul off machine: Two-caterpillar type haul off machine, speed controlled by ABB inverter.

-- Cutter: No-dust cutter and saw acuter alternative, controlled by Siemens PLC and HMI.

1. Extruder: core equipment, responsible for melting and extruding raw materials.
2. Mold: designed according to the shape of the required profile to ensure molding accuracy.
3. Calibration device: through vacuum calibration and cooling unit, ensure the stability of the size and shape of the profile.
4. Pulling device: pull the profile out smoothly to ensure dimensional consistency.
5. Cutting device: cut the continuous profile into the required length.
6. Stacking device: stack the cut profiles neatly for subsequent processing.

1. Construction field:
Used to manufacture door and window frames, decorative lines, skirtings, ceiling lines, etc.
Applicable to outdoor building decoration materials such as flower bed railings, stair handrails, outdoor pavilions, etc.
2. Industrial field:
Used to manufacture piping systems, cable protection sleeves, insulation boards, etc.
Used to manufacture industrial parts such as wear strips and guide rails.
3. Agricultural field:
Used to manufacture greenhouse brackets, irrigation pipes, etc.
4. Home decoration:
Used to manufacture floors, wall panels, decorative panels, etc.
